Cases III

In order to tie the cases with their surroundings, we have mimicked the black baseboard and stripe. Measurements were taken and marked onto cases using an adjustable square and pencil. Each area was then carefully masked and burnished to ensure a clean line.

Several cases will also incorporate other colours from the wall, such as the "Brown Sugar" tan . Make sure that all measuring and masking is done with care, as we had a few small touch-ups and mis-markings which had to be remedied.


Installation Video Pt. 1

Sign Vinyl & Stencils II

Clear transfer tape to be applied in vertical strips and thoroughly burnished to grab all of the small vinyl shapes.

Covering the surface in transfer tape

Using a burnishing tool and thoroughly applying pressure to the entire surface

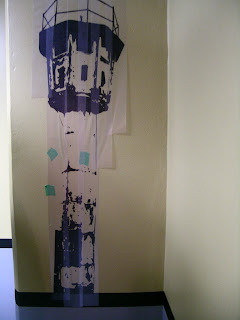

We created a hinge out of the tape to adhere the two graphics joined with painter's tape to the wall while we....

...slowly peeled the backing away and burnished the sign vinyl onto the wall.

After burnishing, the transfer tape is removed slowly and any vinyl stragglers not adhered to the wall are carefully lifted off the tape with blade.


Sign Vinyl & Stencils I

The rooms 2 support columns were originally planned to have watchtower stencils painted onto them, however we chose to use sign vinyl instead. The process for creating a stencil using a vinyl cutter is the same. We just used the inside bits rather than the outside ones.

I used this tutorial: Creating a Custom Stencil using Adobe Photoshop as a rough guide to create the stencil, but took a few shortcuts along the way. Attention to the subtler areas of shading was not as important as it would be in a human face, so I converted it to grayscale right away and then used "live trace" in Illustrator to convert it to a more malleable vector graphic. Once the background was deleted the contrast was jacked up. The image was then chopped into 2 files; top and bottom, to save time printing and to economize vinyl. To print to the vinyl-cutter I used outline mode in AI and sent the file directly from the app. We had to experiment quite a bit with the knife height setting as many of the small details were being picked off as the blade passed over them. You can adjust the blade height while it is operating if you notice problems.

Weeding out the unnecessary bits seemed like it was going to be slow going but wasn't so bad, especially with 2 people. So far we are really happy with the results of the sign vinyl image and if it goes onto the wall smoothly tomorrow, we will surely use this technique again. It has a lot of potential for experimentation with different types of images, lettering and sign vinyl comes in some really eye-catching colours and finishes.

Roland Vinyl-Cutter

Weeding the bottom half of the graphic

Weeding close-up

The top half of the graphic completely weeded.

The Roland CAMN in action.
